Facilities

Our state of the art facilities contain the right tools and machines for nearly any custom manufactured product you require.

Select a department to jump to a list of the equipment available.

Sheet Metal Machining Tooling Welding Inspection

Sheet Metal Dept.

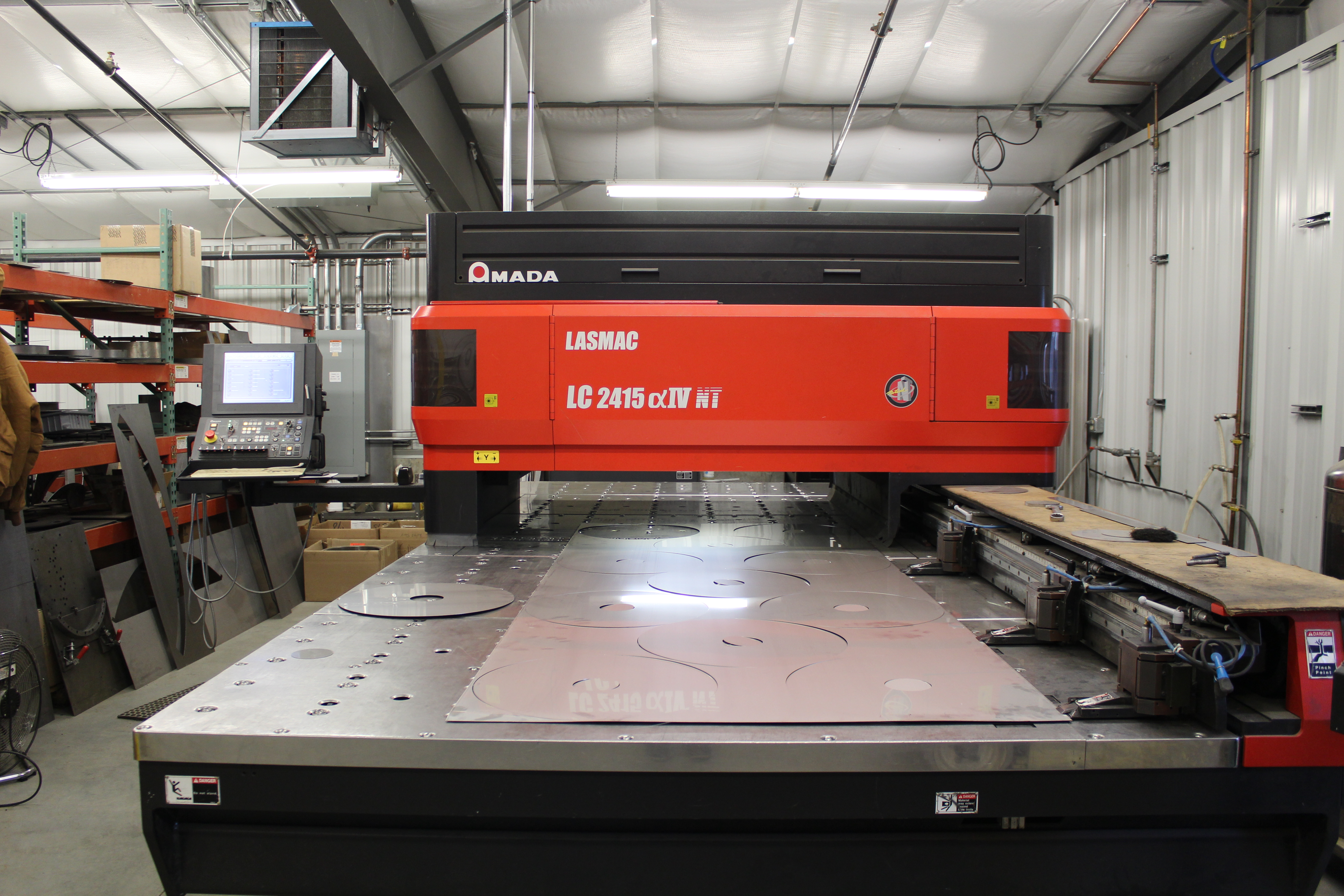

1 – Laser, Amada Pulsar LC 2415 a IV NT 5′ x 8′ 2500W with automatic repositioning and FANUC AF2000i-c touch screen control.
1 – Laser, Amada Altair 2412 bIII 4’ x 8’ 2000W with pallet changer and an 11.8’’
programmable Z-axis.  Combined with flexible fixturing and a 4th -axis rotary option.

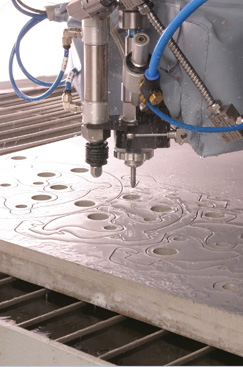

1 – Water Jet, Flow Bengal 4’ x 8’ x 6’’ CNC Shape Cutting System with Dynamic Head
1 – CNC Punch, TRUMPF TruPunch 1000, 80″ x 50″ Work area .25″ Max. sheet thickness
1 – Shear, Cincinnati CNC Back Gage 12’ x 1/4” Capacity
1 – Shear, 24” Diacro #4 Manual
2 – CNC Press Brake, Cincinnati 60 CBII, 6’ 60 ton
1 – CNC Press Brake, Amada RGM2, 4’ 35 ton
1 – Press Brake, Diacro, 6’ 35 ton Hydraulic
1 – Press Brake, Diacro, 4’ 14 ton Hydraulic
1 – Press Brake, Diacro, 3’ 12 ton Hydraulic
1 – Press Brake, Diacro, 2’ 2 ton Hand Brake
1 – Hydraulic Press, Greenerd C Frame HCA-300-57R27, 300 Ton Forming
1 – Hydraulic Press, Pacific PressFormer ll, 200 Ton Forming Press
1 – Hydraulic Press, Baileigh 112 Ton Hydraulic Forming Press
1 – Hydraulic Press, Greenerd Centennial HCTG, 100 Ton Blanking
2 – Hydraulic Press, Greenerd HPB 15, 15 Ton
1 – Hydraulic A/S Forming Press, Stenhoj 200 tons 30” x 40” (18’’ Stroke)
1 – Horn Press, 45 Ton
1 – Rolls, Kane & Roch Form 11”W x 3/8 thk.
1 – Rolls, Plate, Carell Hydraulic TSI-H3/2, 5’ Length x 3/16” Capacity
1 – Rolls, Enco Power, 52” x 3”; 1/16” Cap
1 – Rolls, Pexto Power, 36” x 2”; 1/16” Cap
1 – Rolls, Baileigh Power, 60” x 5” Dia,
1 – Hydraulic Sizer 28” Dia. 35 ton
1 – Hydraulic Sizer 24” Dia. 25 ton
1 – Dual Action Hydraulic Ring Expander, 36” Dia,  70 Ton Capacity
2 – Diacro # 2 Benders
1 – Iron Worker Uni-Hydro 42 Ton
1 – Do-All Friction Saw
1 – Trinco Abrasive Blast Cabinet
3 – Vibratory Bowl Finishing Machines,
3 – Baileigh 80” Down Draft Deburring Benches

Machining

1 – CNC Lathe, Milltronics ML26 , Ø35” Capacity
1 – CNC Lathe, Milltronics ML20 Ø20” swing with Ø28” Capacity over gap
2 – CNC Lathe, Haas ST30, Ø31.75” swing  with Ø20” Capacity over gap, 12 station turret
1 – CNC Lathe, Haas SL20, Ø23″swing with Ø9.5” Capacity over gap, 10 station turret
1 – CNC Lathe, Haas Model TL-1, Ø8″ x 29″ Z travel; 16″ Capacity over gap
1 – CNC Mill, Haas VF 3YT Vertical, 30 station tool changer, 40″X, 26″Y, 25″Z travel
2 – CNC Mill, Haas VF 3YT Vertical, 20 station tool changer, 40″X, 26″Y, 25″Z travel
1 – CNC Mill, Haas VF-O Vertical, 20 station tool changer, 20″X, 16″Y, 20″Z travel

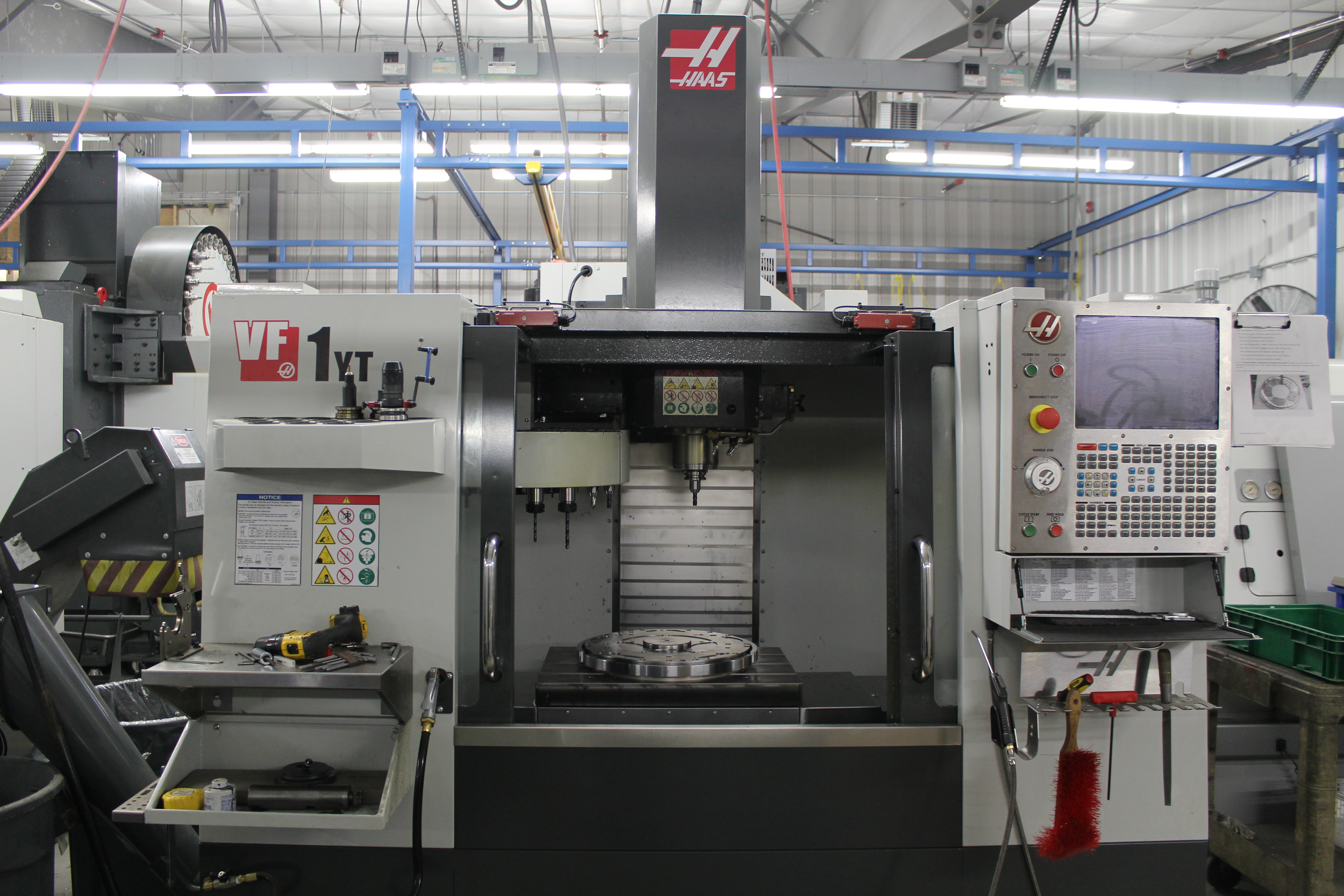

2 – CNC Mill, Haas VF1 Vertical, 16 station tool changer, 20” X, 16” Y, 20” Z travel
1 – CNC Mill, Milltronics VKM4, 30” X, 15” Y, 11 ¼” Z travel
2 – CNC Mill, Bridgeport with EZ TRAK DXII, 48” Table
1 – CNC Mill, Bridgeport with M3 Proto TRAK, 48” Table
2– CNC Mill, Bridgeport with M2 Proto TRAK, 42” Table
1 – Engine Lathe, Summit Ø24” x 72” long with Ø34’’ Capacity over gap
1 – Engine Lathe, Vectrax Ø15” x 50” long with Ø24’’ Capacity over gap
1 РVertical Turret Lathe, Ikegai, CNC Control, 50ӯ Table
1 – EDM Drill, Yougar, 8 axis control
1 – EDM Drill EdMax 3 Axis CNC Control

Tooling

1 – EDM, Agie Charmilles CUT 20 P, 13.78″X, 9.84″Y, 9.84″Z
1 – CNC Lathe, Haas TL-3W, Ø30” x 60″ Z travel
1 – CNC Mill, Haas VF3 Vertical, 20 station tool changer, 40″ X, 20″ Y, 25″  Z Travel
1 – CNC Mill, Haas VF-OE Vertical, 16 station tool changer, 30″ X, 16″ Y, 20″ Z travel
1 – CNC Rotary Table, Haas
2 – Vertical Mill, Clausing with ACU-RITE MILL PWR 54″ x 10″ Table
1 – Vertical Mill, Clausing with ACU-RITE MILL PWR 52″ x 9″ Table
1 – CNC Mill, Bridgeport with M3 Proto TRAK, 48” Table
1 – CNC Mill, Bridgeport with M2 Proto TRAK, 42” Table
2 – Surface Grinders, Brown & Sharp 618 Micromaster Auto
2 – Kalamazoo Horizontal Stock Saw
1 – Heat Treat Oven For Tooling

Welding

4 – Semi Automatic Welder, Gullco Jetline Control
3 – Tig Welders, Lincoln Precision Tig 275
1 – Tig Welder, Lincoln Squarewave 255 Amp.
1 – Tig Welder, Miller Syncrowave 250 Amp.
8 – Tig Welder, Lincoln Invertec V160
1 – Mig Welder, Miller 250 Amp.
2– Spot Welder, Amada Programmable, Model ID40IVst, 90KVA
1 – Spot Welder, Miller, 20 KVA
1 – Seam Welder, T.J. Snow Slimline Longitudinal NM002553
1 – Seam Welder, T.J. Snow Slimline Circular NM002554
3 – Rotary Welding Positioners, Baileigh Model WP 1100, 24” Ø Table
1 – Rotary Positioner, Preston Eastin Automatic, Model PA-15 HAD, Ø24” Table
1 – United Resistance Coupon Pull Tester with D.R.O. (Digital Read Out)

Inspection

1 – CMM, Zeiss CONTURA G2 with CALYPSO, 48″ x 40″ capacity
1 – CMM, Brown & Sharp “gage 2000”, 24” x 20” capacity
1 – Master View Comparator
1 – Rockwell Hardness Tester
1 – Spring Force Tester
2 – 4’ x 6’ Granite Inspection Plates
1 – PRYOR Dot Peen Marking System
Assorted Inspection Tools
